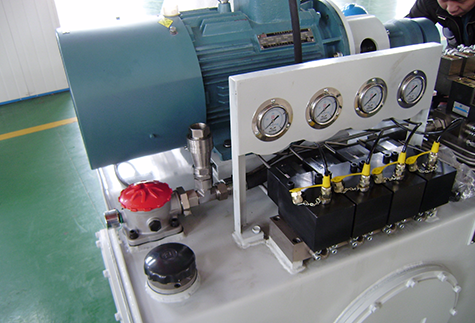

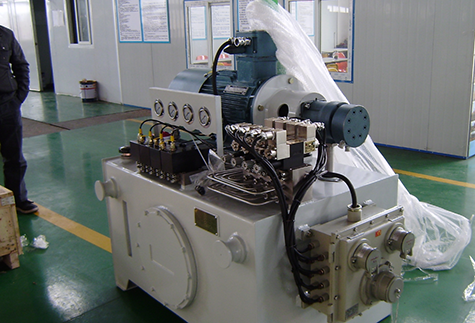

为深圳某油田设备发展有限公司提供的多点同步顶升液压站，是获得CCS认证的一套船用液压站。 这套项目是一套同步顶升用的液压站，柱塞泵采用DYNEX PF-3017X4，其余元件基本为国产。系统采用防爆电动机，和防爆接线箱，系统防爆等级ExdⅡBT4。顶升装置由4个双作用的活塞缸组成，额定工作压力25Mpa，额定顶升力180吨，最大行程1000mm，最快设计顶升速度0.5m/min。

系统完全是曼理公司自行设计，委外生产制造的液压站，投入使用后获得客户的肯定和好评。

Multi point synchronous jacking system is a vessel hydraulic station with CCS certification.

This project is used on vessel, piston pump use Dynex PF-3017-X4,other components are domestic made.System use explode proof electric motor and ex-proof case,system ex grade is ExdⅡBT4. Jacking system is composed by 4 double action cylinders,rating working pressure is 25 Mpa,rating jacking power is 180 ton,maximum stroke 1000mm,fastest design jacking speed 0.5m/min。

This system is wholly designed by Marlin Engineer Technologies(Shanghai), outsourcing process,when this system start to use get our customer's praise and favorable comment.
